Build your object from parts as thick as your material. Every slot and notch is worked out for you, then you export a DXF that is ready for the laser.

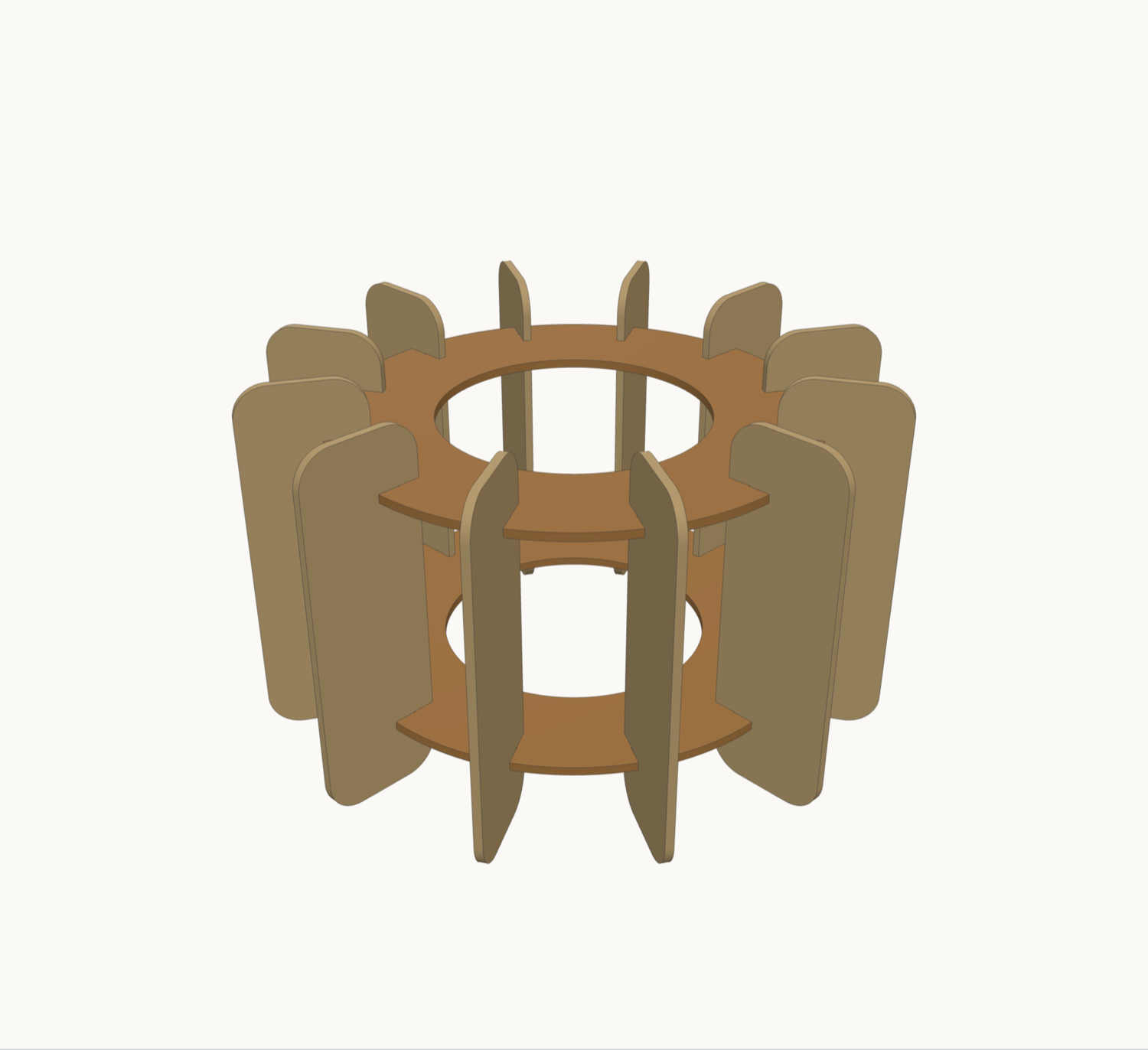

Made in Plyjoin: 14 parts, 24 joints — one fin drawn, copied in a circle, joints computed from the geometry.
Shapes, sketches or an imported drawing, each one as thick as the sheet you will cut.
Cross laps, finger joints and slots are cut from the real geometry — and follow the parts when you move them.
Parts laid out on the sheet, clearance and kerf already compensated. DXF or SVG, mm or inches.
No CAD background required. If you can drag a rectangle, you can build an interlocking object.
Switch from 3 mm to 5 mm and every part, slot and tab is recalculated. No rework.
Move a part and its slots move with it. Tabs, cross laps and through slots, with clearance you control.
Rosettes, mandalas, lamps: repeat a part around an axis and edit them all at once.
Draw polylines and Bézier curves, cut a word as a part, or bring in an SVG you drew elsewhere.
Closed polylines on a CUT layer, part names on LABELS, kerf compensated. Millimetres or inches.
It runs in your browser, on your computer. Your projects stay yours — download them any time.

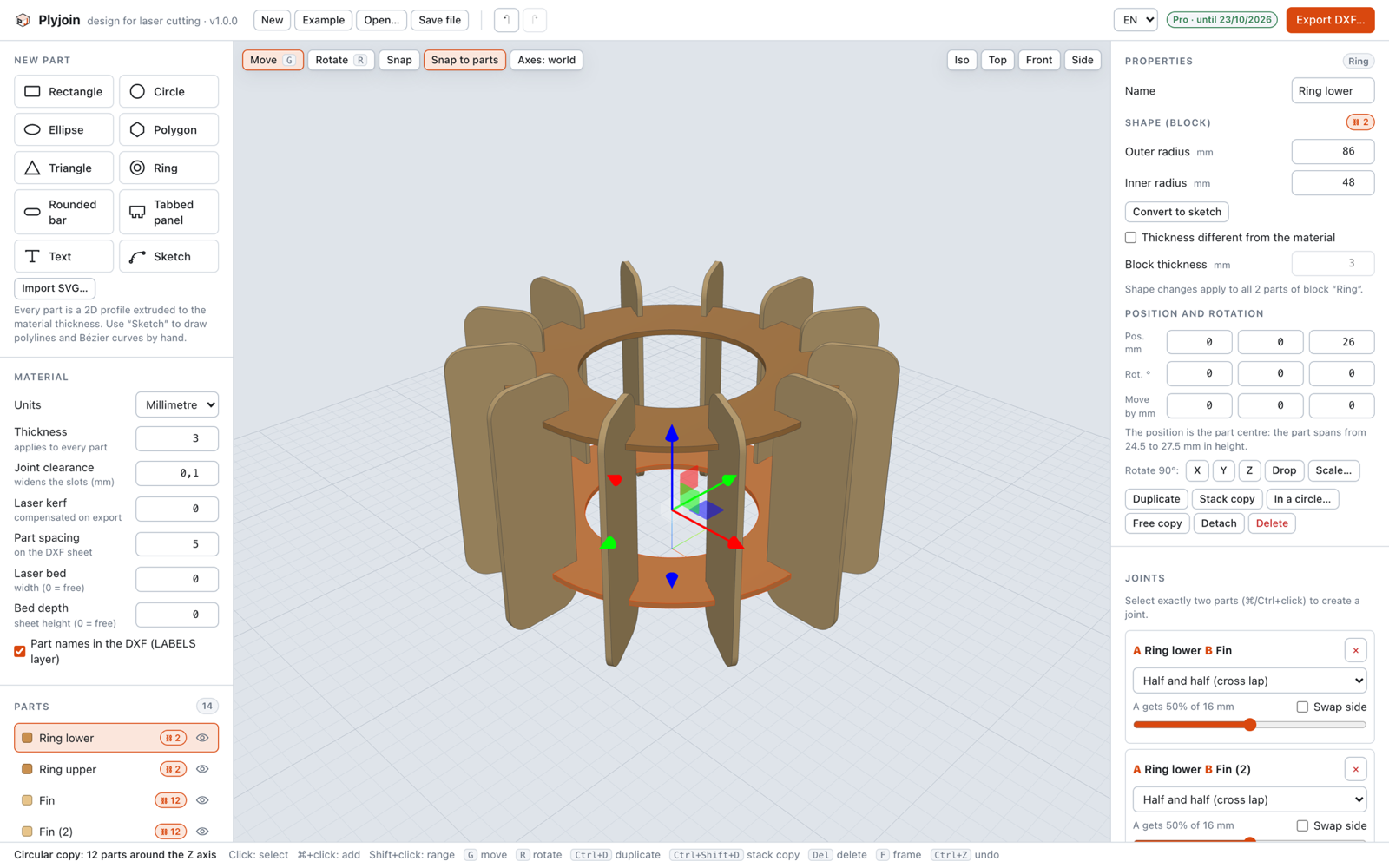

The whole tool on one screen: parts on the left, the object in the middle, joints on the right.

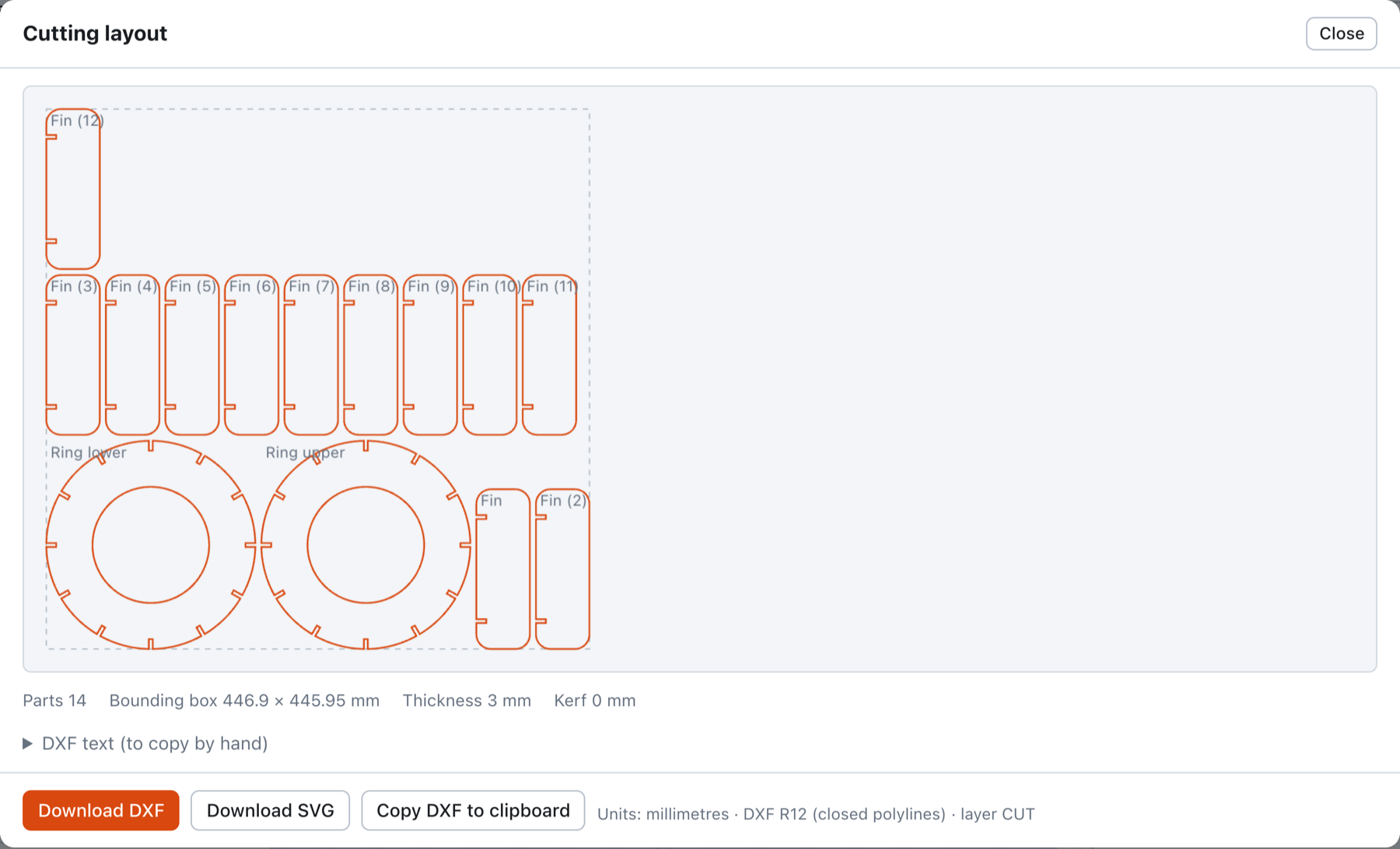

Sheet layout
Press export and every part is nested on the sheet with the spacing you chose — clearance and kerf compensated, holes and notches exactly where the joints put them. Tell it the size of your laser bed and the parts are split into as many sheets as they need, one file each.
Design a real object and cut it. A free account, nothing to pay.
Up to 2 projects saved online. Nothing expires, nothing is watermarked.
Create your free accountDraw your own shapes and keep every project with you.
Everything in Free, plus
Cancel whenever you like. Every new account starts with 14 days of Pro.
Start with 14 days of ProFor people who cut every week and start from their own drawings.
Everything in Plus, plus
Commercial use included, on every plan. Try it free for 14 days.
Choose ProEvery new account starts with 14 days of Pro — the whole tool, nothing held back. No card asked, cancel whenever you like.
Want to look around first? Try without signing up — design freely, then create the free account when you want the DXF.
